Dispersion System breaks down ink particles and stickies for improved stock quality.
Quality craftsmanship in manufacturing & proven performance at customer sites
.JPG&w=1920&q=75)
.JPG&w=1920&q=75)
.JPG&w=1920&q=75)
.jpg&w=1920&q=75)
.JPG&w=1920&q=75)
.JPG&w=1920&q=75)
.JPG&w=1920&q=75)
.JPG&w=1920&q=75)
.jpg&w=1920&q=75)
.jpg&w=1920&q=75)
Premium stock quality from recycled fiber. Reduce stickies. Improve brightness. Maximize yield.
Up to 95%
Stickies Reduction
+3-5 ISO
Brightness Gain
85-95°C
Operating Temp
0.01mm
Gap Precision
Select a configuration to view the complete process flow
4 - 5% Consistency
Conical screw cone and pneumatically controlled counter pressure cone ensure desired dewatering effect upto 10% consistency with flexibility of operation.
Very sturdy with unique features. Screw made in single piece casting with hard facing edges. Outlet consistency upto 38% - 42% after Screw Press.
Thickened stock is shredded uniformly to increase surface area. Helps steam to penetrate evenly into the pulp stock.
Designed to avoid escaping of steam, reducing steam consumption and improving dispersing effect. Features inlet chute tapered compression zone.
Shredded stock heated to 90°C - 100°C with temperature control system. Steam nozzles throughout the length for uniform heating.
The Infeeder screw feeds the stock uniformly to the disperser.
Designed for dispersing at 30% consistency, 100°C, with gap control upto 0.01 mm accuracy via electro hydraulic arrangement. Gentle fibre treatment ensuring optimum development and dispersion of contaminants in microns.
4 - 10% Consistency
Achieve premium paper quality from recovered furnish.
Ink dispersed to invisible particle size
Contaminants below visible threshold
Fewer breaks, cleaner machine
More usable fiber from waste
Quartz Surface Treatment for superior run-in performance and operational stability.
Surface Comparison
Parason Disperser Disc with Quartz Surface Treatment
.jpg&w=1920&q=75)
Precision-engineered screw conveyors up to 12.7 meters
Each screw optimized for its specific role in the dispersion process.
Initial consistency increase
High-pressure dewatering
Steam seal creation
Flake breakdown
Temperature elevation
Controlled disperser feeding
Electro-hydraulic precision
Pressurized chamber
Energy efficient
Continuous operation

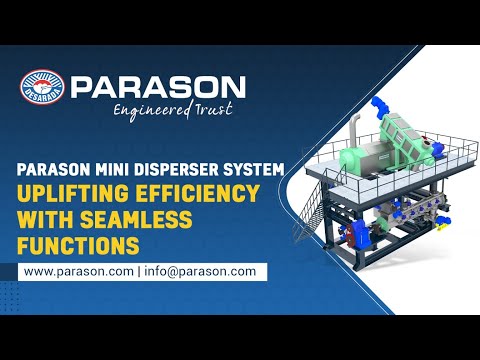

Skid-mounted, ready to install. Ideal for specialty paper and smaller operations.
20 to 300 TPD capacity
| Parameter | Mini | DP-500 | DP-600 | DP-750 |
|---|---|---|---|---|
| Capacity (TPD) | 20-30 | 35-45 | 50-90 | 90-300 |
| Motor Power (kW) | 90-150 | 130-200 | 180-300 | 300-600 |
| Gap Control | Manual | Auto | Auto | Auto |
Custom configurations available. Contact us for specific requirements.
Proven across all recycled fiber grades
Copy, Offset, Bond
Testliner, White-top
Facial, Bathroom, Towel
Standard, SC grades
Keep your system running at peak performance
Genuine replacement parts
Preventive & breakdown support
24/7 expert assistance
All components in-house
Global installation base
Industry experience
Maximize fiber recovery
Get a customized dispersion solution for your recycled fiber line.
